Model: S749

1877 Sharps Overbough Long Range 30"

Sharps Rifle Company received complaints from the long range shooters, who were forced to limit rifle weight to 10 lbs by NRA for the rifles they used in competitions, such that they assembled lighter, under dimensioned barrels to the 1874 heavy frame, resulting in vibration and recoil problems.

The solution was introduced by Charles E Overbaugh, the sales manager at Sharps Rifle Company, who redesigned the 1874 frame model, reducing its weight and enabling fitting of barrels suitable for competition. Thus the 1877 model was created.

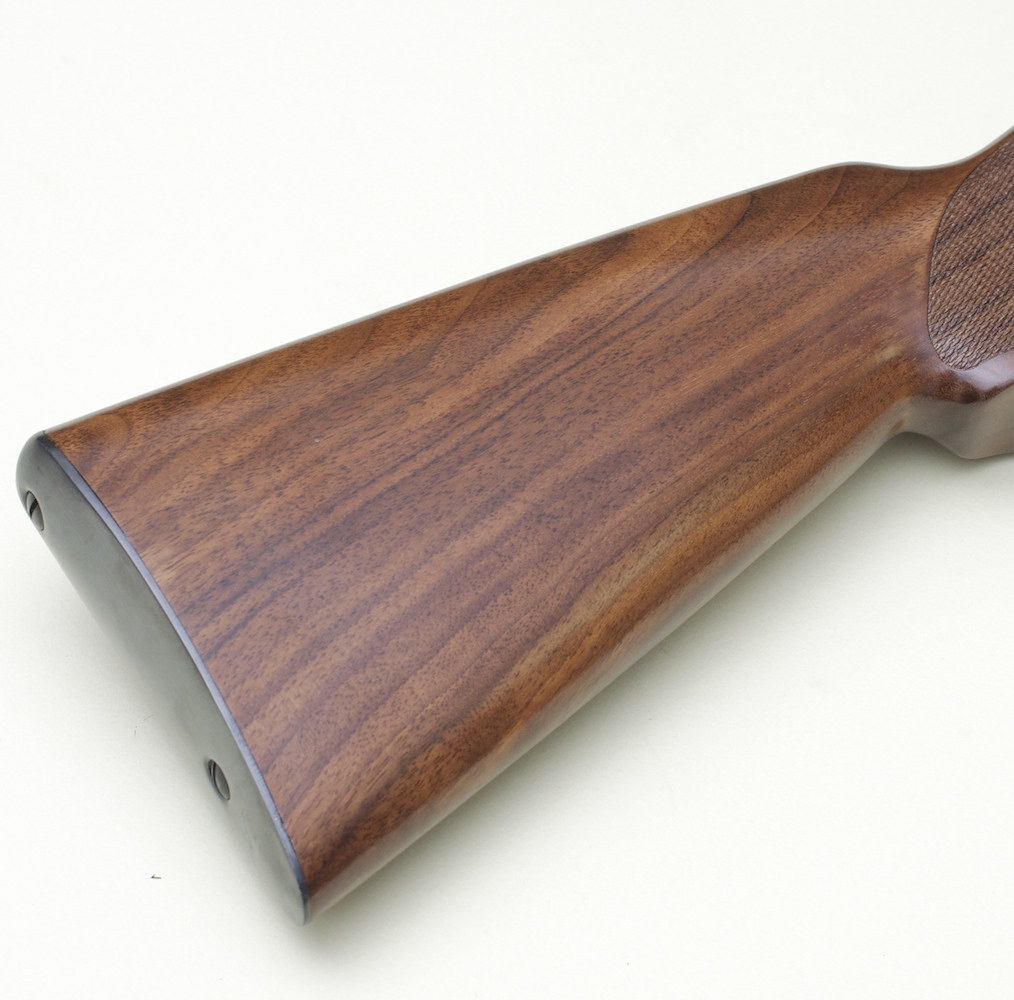

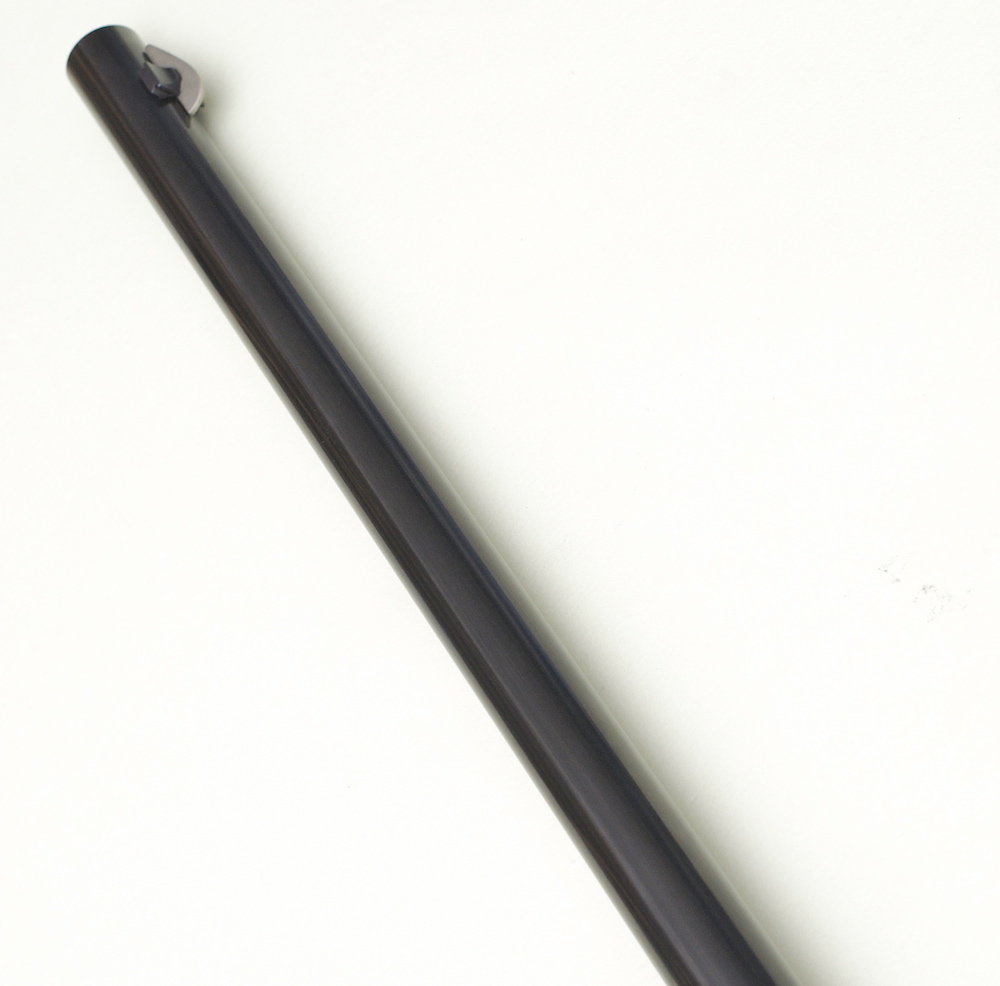

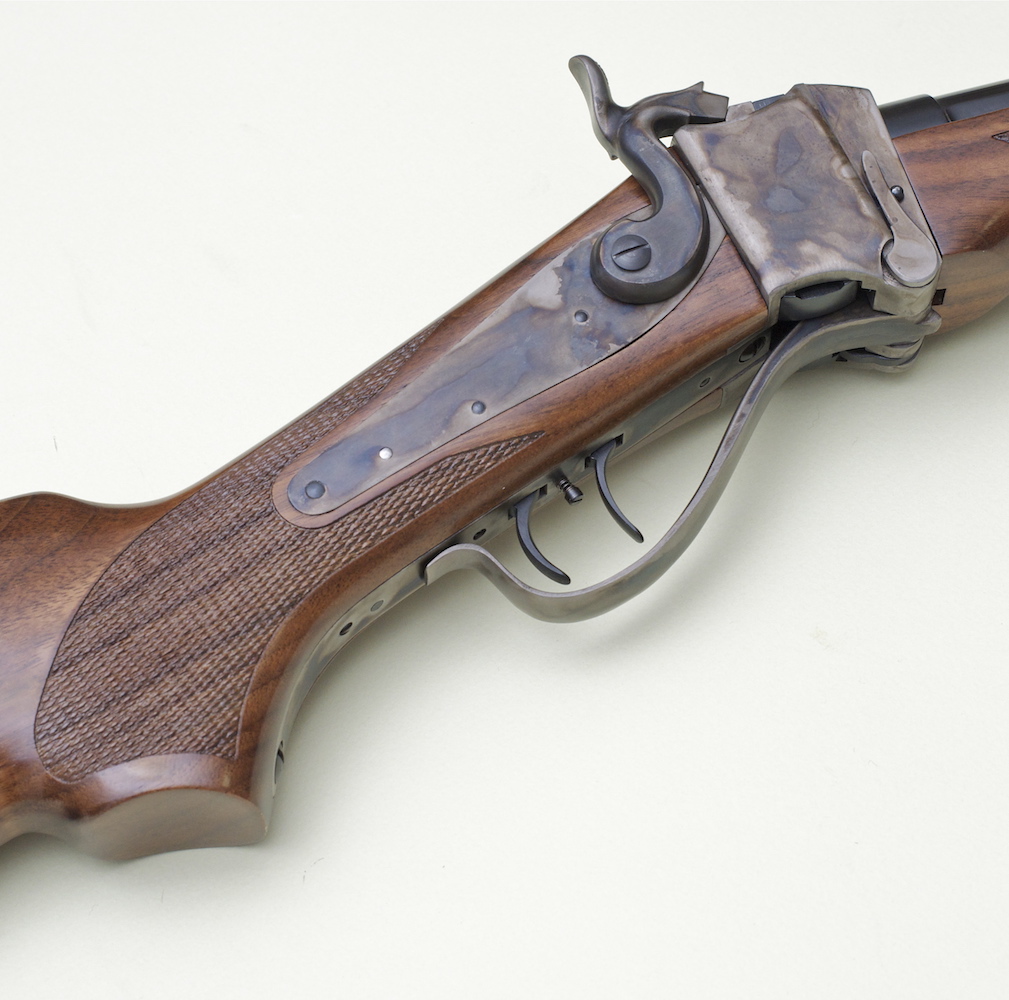

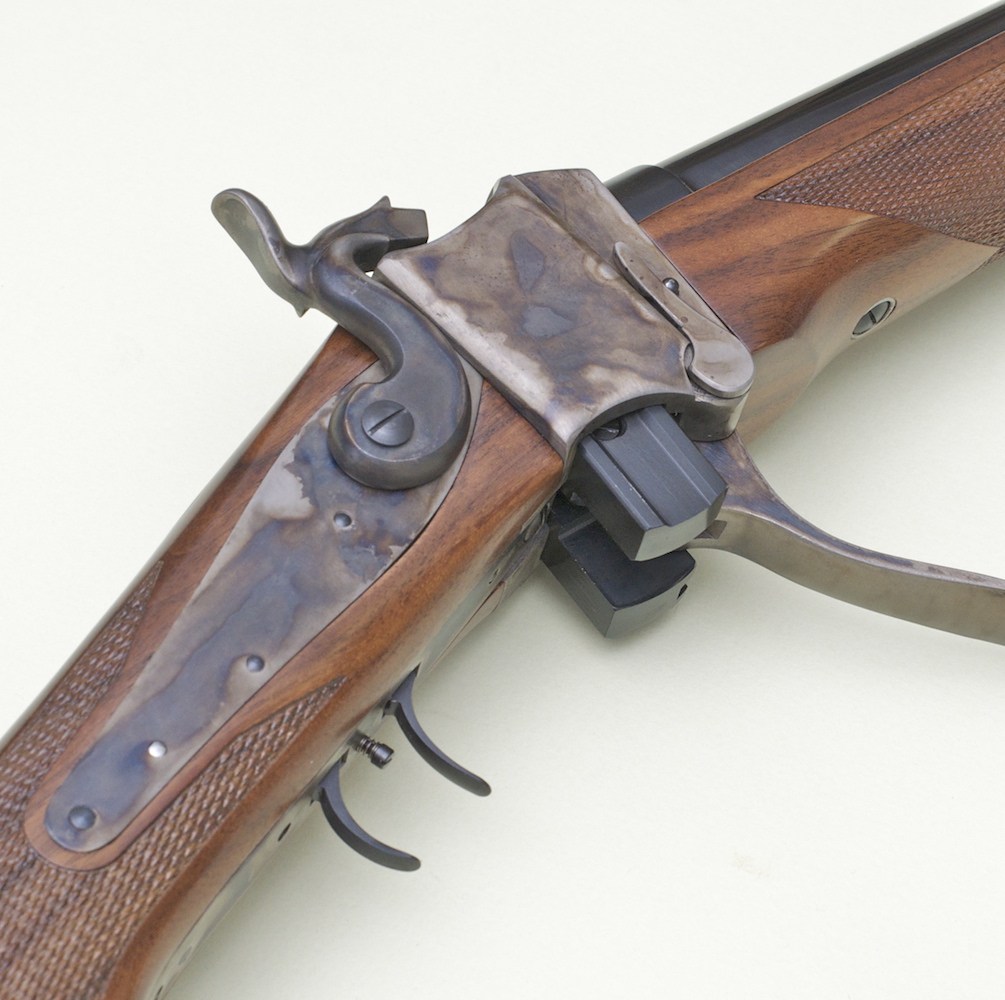

Broach rifled barrel PMG quality, forged frame, American walnut stock

Code: 010S749457

Caliber: .45-70 Gov.

Grooves: 6

Technical specifications

Caliber .45-70 Gov.
Grooves 6
Twist mm 460
Twist inches 1:18
Barrel's length mm 760,00
Barrel's length inches 30
Overall length mm 1190,00
Overall length inches 46 7/8
Weight kg 4,000
Weight lbs 8.30
Family code S.749-457
Classification 12_02559
